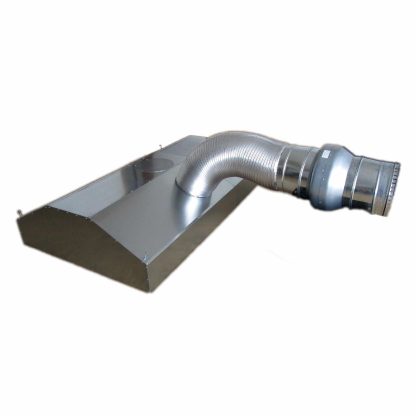

Fume Exhaust Hood Package #6 – 12″ 1150CFM Fan – 48″ L x 72″ W x 16″ H

This kit includes everything needed to set up ventilation for 1 larger torch or 2 medium torches or up to 4 small torches. NOTE: (It is up to the end user to determine if there is adequate airflow for the amount of combustion that is happening).  This hood is made with two 12″ openings, one is in the top middle panel and one is on the angled top panel, this allows options for how the duct will tie in to the hood, a cap is supplied to cover one of the two openings.  The unassembled hood panels fit in two standard packages that can be shipped UPS Ground. This keeps the total cost down and makes for an easy to install system. This kit includes the following:

• 1- 12″ 1150 cfm centrifugal fan (with 6′ plug attached)
• 4′ x 6′ hood (all nuts and bolts for hood assembly)
• 4- eye bolts with washers
• 1- 12″ x 6′ flexible duct
• 2- 12″ fan connectors
• 2- 12″ male collars
